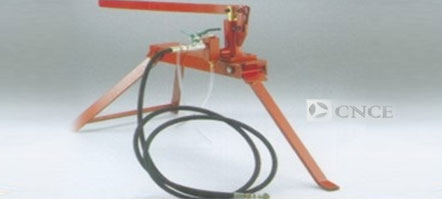

CNCE PUMPS ..............................................................................................................................

continue reading >>

CNCE ACCESORIES..........................................................................

continue reading >>

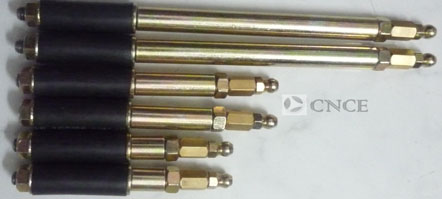

Different sizes & dimensions are available. These are the basic ones.

There are two primary categories of packers available. Insertable packers (mechanical packers) and surface mounted ports.

Mechanical packers are typically used for polyurethane injection and high pressure epoxy injection. Since they are not glued to the surface, they work well in wet areas and with decayed 'problem' concrete. Mechanical packers come with zerk fittings and button heads (slide fittings). The zerk type is more commonly used and is less costly. It easily connects and disconnects and works nicely with medium to high injection pressures. The button head type can be of advantage in high volume applications and it offers a superior connection which is helpful for single operator injection and large applications.

Injection pressure is the keyword. To determine a quality packer it must withstand high injection pressures without leaking and moving out of its drill hole. A snug fit and solid connection are mandatory. Nobody likes packers to fail at injection pressures of 1000psi and more.

Premium packers are made of metal and an expandable rubber sleeve to minimize concrete spalls and packer blow outs. A medium soft, 'made to stick' rubber that evenly expands diameter while compressed provides the best grip. Mechanical packers made of cheap plastic and a plastic sleeve is at a disadvantage at high pressures, but may suffice at lower-high volume injections. Always keep in mind, a snug and reliable fit is essential for the safety of the technician and the key factor for successful injection work.

The size of the packer selected depends on the volume to be pumped, drill depth, injection pressures to be applied as well as cosmetic and other considerations. Common diameters are 1/4inch, 6mm, 3/8 inch, 8mm, 10mm, 1/2 inch,13mm, 5/8inch, 16mm, and sometimes 3/4 inch or even larger. (In mining applications for example, packers can be several feet long and several inches thick) For concrete injection, typically the 1/2" and 5/8" packer seem to be the best compromise in strength and size and can be called a standard.

The 1/2" (13mm) types have been gaining in popularity though. Long versions and extensions are also available. It is good practice to keep the drill-holes rather smaller than larger when selecting your packer size.

Design considerations such as location of an anti-return valve, ease of use etc. may be of concern. We generally recommend mechanical type packers for most jobs. Their design can cope with most demands found at an injection job and the 'problem rate' is very low - a packer for all conditions. If high product flow at lower pressures is desired, the 5/8" button head packers achieve good results. The 3/8 Hammer-In packer performs at low pressures in excellent concrete. Precise round drill holes are important for a snug fit.

Surface ports are commonly used for epoxy injection at low injection pressures. They are glued to the concrete surface. A spread out base with holes is recommended for good adhesion. The grout line can then be attached with a quick-connect system. Since most surface ports lack an anti-return valve, a seal cap is provided for use after injection.

We provide unique ports for specialty applications such as a surface port with a zerk fitting to utilize single component injection systems for small epoxy and polyurethane jobs.
